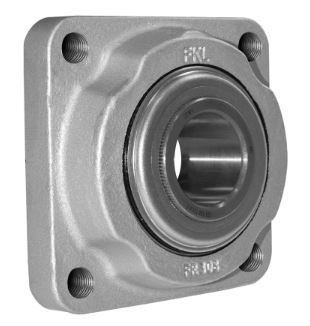

Ložisková jednotka pro válce
ložisko LSQFR 308 TDT.H.T možno použít jako náhradu za:
- AMAZONE CE066
- HORSCH 00240028
- SNR UCFE 308 A02X3
- INA TCJ 40

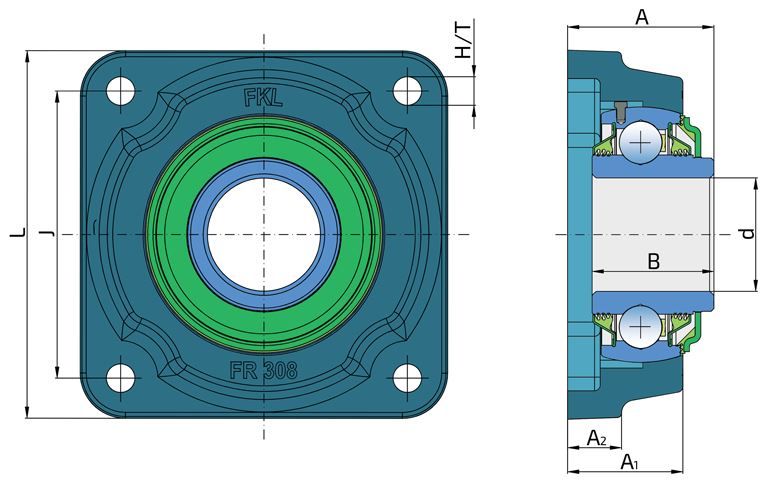

| d | Bore diameter | 40 | mm |
| L | Total length | 130 | mm |
| J | Distance between the holes | 101.5 | mm |
| H/T | Hole/Thread | M12 | mm |
| A | Overall width | 51.4 | mm |
| A1 | Total housing width | 40.6 | mm |
| A2 | Housing flange thickness | 19 | mm |
| B | Width inner ring | 42.9 | mm |
| kg | Mass | 2.5 | kg |
| Cdyn | Dynamic load rating | 62.3 | kN |
| Co | Static load rating | 45.2 | kN |
| Pu | Fatigue load limit | 1.898 | kN |
