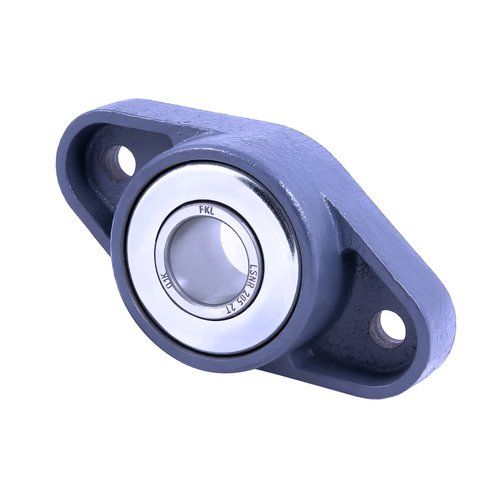

Ložisková jednotka pro válce
ložisko LSNR 205 2T možno použít jako náhradu za:
ložisko LSNR 205 2T možno použít jako náhradu za:
- INA F-233449
- LEMKEN 3199367
- RBF PN00028
| d | Bore diameter | 25 | mm |
| H | Housing height | 135 | mm |
| L | Total length | 71 | mm |
| J | Distance between the holes | 14 | mm |
| A | Overall width | 35 | mm |
| A2 | Housing flange thickness | 21 | mm |
| B | Width inner ring | 34.8 | mm |
| N | Hole diameter | 11 | mm |
| kg | Mass | 0.91 | kg |
| Cdyn | Dynamic load rating | 14 | kN |
| Co | Static load rating | 7.8 | kN |
| Pu | Fatigue load limit | 0.328 | kN |
